NEW! Hyperion

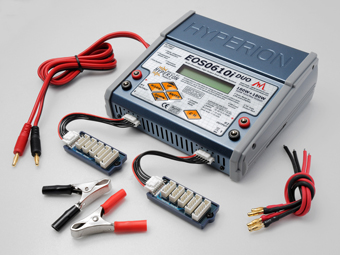

EOS 0610i 6S 16N CHARGER, with Integrated LBA10A balancer
All EOS610 Duo chargers
have been updated with the newest firmware upgrade 1.6
IMPORTANT TECH NOTES FROM
HYPERION
Connection Order:
Always connect the MAIN
pack leads (the two +/- thick wires) to the charger FIRST, then insert the
BALANCE Connector into the charger balance adapter.
Disconnection Order:
Always disconnect the BALANCE connector from the charger FIRST and then
disconnect the MAIN pack leads (the two +/- thick wires).
Specs:
-
1-6 Cells
Lithium Polymer
-
1-6 Cells
Lithium Ion
-
1-6 Cells A123
-
1-16 Cells
Nicd/Nimh
-
1-12 Lead Acid
-
Adjustable
Power Sharing (%) Between Outputs
-
2 Built-in
LBA10 Balancers
-
0.1 ~ 10.0A
Charge Current
-
360-Watts Max
Output
-
TCS – Terminal
Capacity Selection
-
PC Port for
Data Logging and Firmware Upgrades
-
Temp Sensor
Ports
-
Wide Voltage
Input Range 11v~28v
-
Power Supply
Amperage Control to allow reliable with lower-output power supplies
-
Power Supply
Voltage Control (PS Load Control) works in concert with Amperage control
to insure the charger does not overload your power supply
-
Output Cords
Included
-
Dual Cooling
Fans
-
20 User Definable
Memory Positions
CLICK HERE
to see datasheet. |
■
